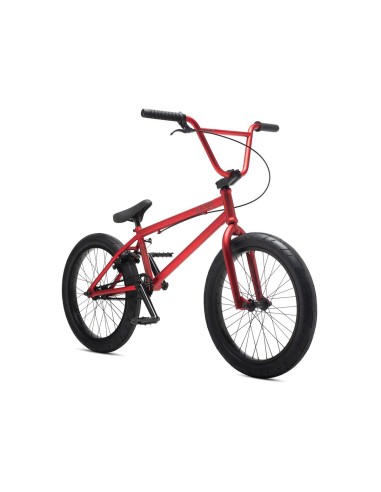

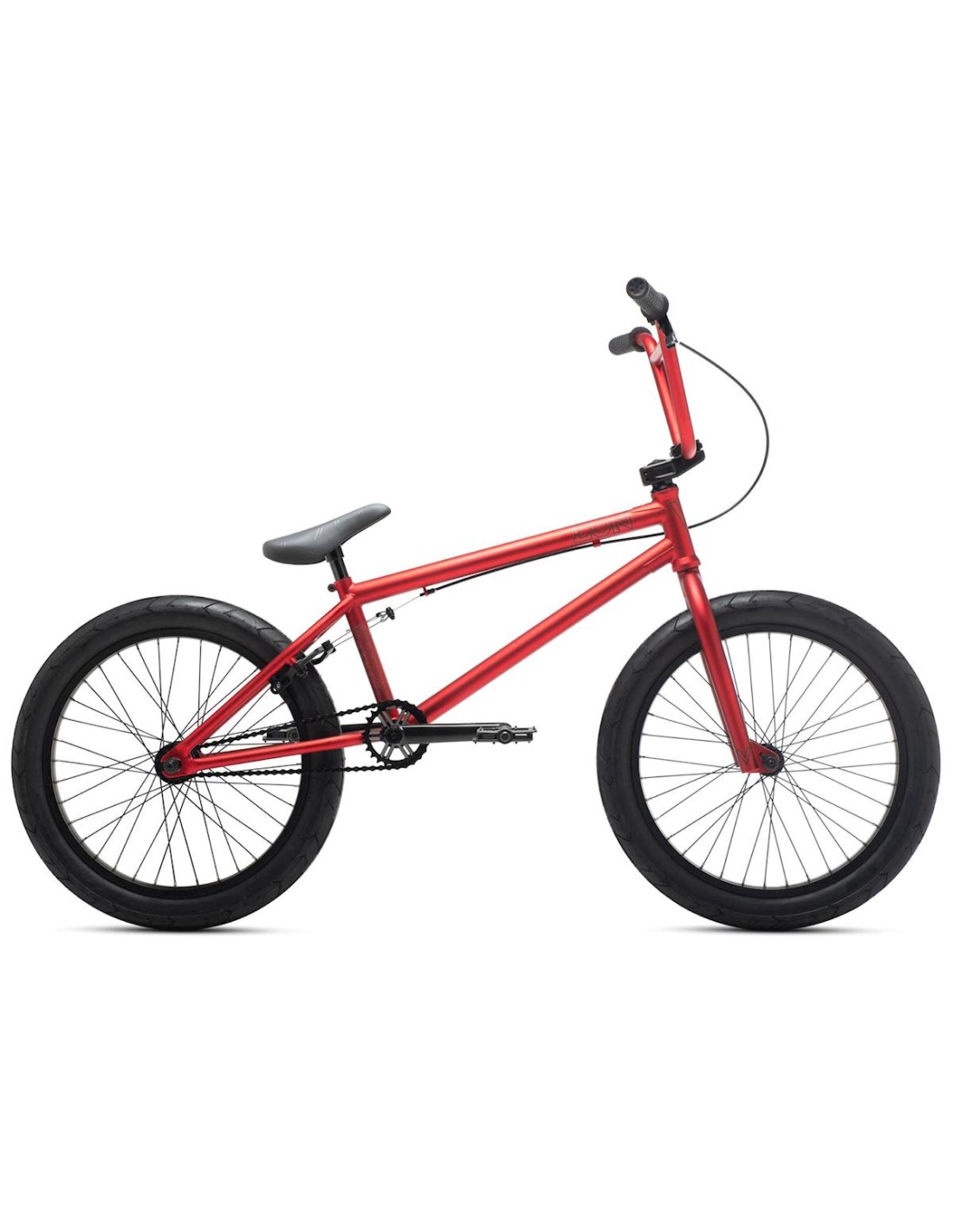

The new Eon merges modern spec, pop color, and flair to create a great all-around ride. The Eon frame features chromoly top and down tubes, a taller standover, tapered leg forks, 9-inch rise bars, Verde Branch padded 1-piece seat/post combo, and alloy Recon 25T sprocket keep this ride tight. Perfect for parks, pump tracks, and street. Two colors. Two sizes. Too steezy.
Frame Spec
Frame: Hi-ten steel frame w/ chromoly top and down tubes, CNC machined integrated head tube, Mid BB, top tube gusset w/ Verde logo
Top Tube Length: 21” (XL)
Chain Stay Length: 13.5”
Head Tube Angle: 74.5º
Seat Tube Angle: 71º
Bottom Bracket Height: 11.7”
Standover Height: 8.9”
Parts Spec
Fork: Hi-ten steel w/ 2-piece chromoly steerer tube, tapered legs
Bars: Hi-ten steel, 9” rise
Stem: Verde top load, 50mm reach
Headset: Sealed integrated
Brake: Alloy U-brake
Lever: Alloy, 2-finger design
Rear Hub: Verde 100, fully sealed, alloy, 14mm axle, 9-tooth driver
Front Hub: Verde 100, fully sealed, alloy, 3/8” axle
Sprocket: Verde Recon 25-tooth, stamped 6061 aluminum
Cranks: Tubular chromoly 3-piece, 170mm
BB: 19mm sealed Mid
Chain: PYC 410, black
Pedals: DUO Brand Resilite platform
Front Rim: 6061 aluminum, single wall, 36-hole
Rear Rim: 6061 aluminum, single wall, 36-hole
Spokes: Black w/ black nipples
Front Tire: 20 x 2.4” DUO Brand HSL, 65psi
Rear Tire: 20 x 2.4” DUO Brand HSL, 65psi
Seat Verde Branch w/ integrated post
Seat Post: Uni-style, integrated, alloy, 25.4mm diameter, 130mm length
Seat Clamp: Integrated
Grips: Verde Leaf grips w/ press-in Verde bar ends
Weight: 25.3 lbs
